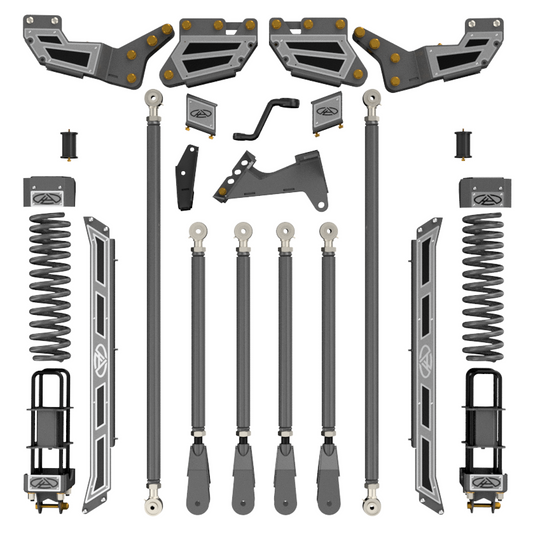

2017-2023 F-250/F-350 SRW Hydraulic System
With this system you can control the ride height of your truck with the push of a button. The lift height ranges from stock to 13” and Any Level in between for trucks with a Gross Vehicle Weight Rating over 10,000 lbs. For trucks with a Gross Vehicle Weight Rating of 10,000 lbs or less we put stops inside the hydraulic cylinders to limit the lift height to a maximum of 8” for compliance with Federal Motor Vehicle Safety Standards.
System Includes:
Custom Any Level Lift Parts (Raw, uncoated):
- Hydraulic Lever Arms w/Rams & Mount Brackets (0-13" or 0-8" of adjustment depending on Gross Vehicle Weight Rating)
- Patented Steering & Panhard Mechanisms
- Front & Rear Crossmembers
- 4 Link Bars
- Axle Brackets
- King Coilovers (Standard Blue, Black, or Titanium)
- Single Rate Front and Dual Rate Rear Coil Springs
- Hardware (Nuts, Bolts, Washers, Bearings, Joints, etc)
- Transfer Case Indexing Ring
- 24 Volt Power Unit (Pump, Motor, Reservoir, Motor Starter)
- Valve Stack for Power Up/Power Down, Flow Dividers, Slow-downs
- Hydraulic Lines and Fittings
- Wiring
- Switch-Pro (8 Channel Switch Panel w/ Cell Phone Control)
- Street Charger (Charges 24 Volt Hydraulic System While Driving)
- 24 Volt Battery Charger: Schauer JAC2024H

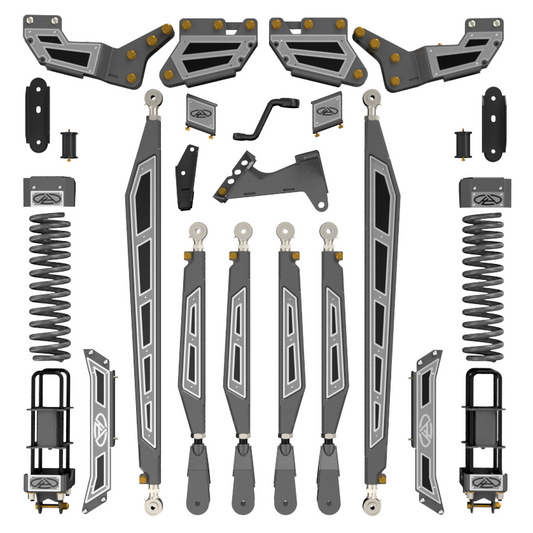

2017-2023 F-350/F-450 Hydraulic System with Airbag Subframe
How do you add capability to the industry’s most capable lift? Choose our proven hydraulic system with the addition of our patented airbag subframe to provide an adjustable spring rate at Any Level from stock to 13” of lift. This system was specifically designed for the dual rear wheel application but can also be used on single rear wheel trucks when an adjustable rear spring rate is desired.
System Includes:
Custom Any Level Lift Parts (Raw, uncoated):
- Hydraulic Lever Arms w/ Rams & Mount Brackets (0-13" adjustment range)
- Patented Steering & Panhard Mechanisms
- Front & Rear Crossmembers
- 4 Link Bars
- Axle Brackets
- King Coilovers (Standard Blue, Black, or Titanium)
- Single Rate Front and Dual Rate Rear Coil Springs
- Hardware (Nuts, Bolts, Washers, Bearings, Joints, etc)
- Transfer Case Indexing Ring
- 24 Volt Power Unit (Pump, Motor, Reservoir, Motor Starter)
- Valve Stack for Power Up/Power Down, Flow Dividers, Slow-downs
- Hydraulic Lines and Fittings
- Wiring
- Switch-Pro (8 Channel Switch Panel w/ Cell Phone Control)
- Street Charger (Charges 24 Volt Hydraulic System While Driving)
- 24 Volt Battery Charger: Schauer JAC2024H
- Patented Airbag Subframe (Including Bags with Manual Fill Valves)
